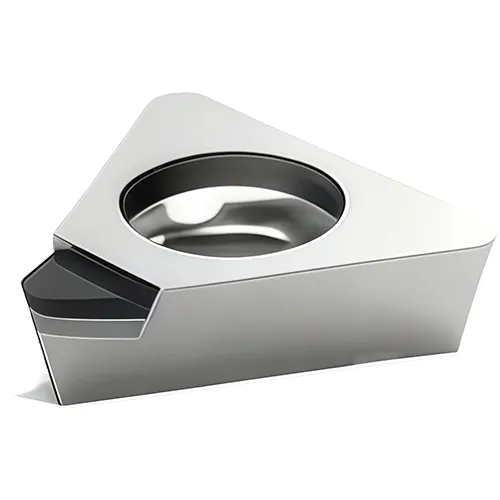

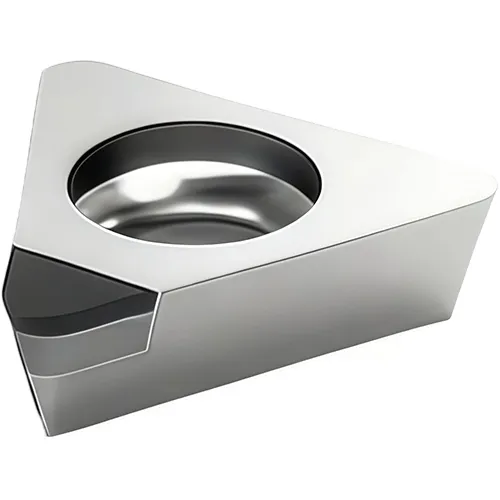

设备参数及选型：

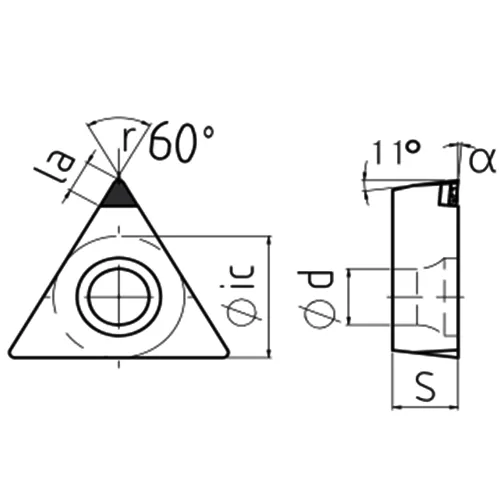

公制代码ISO 英制代码ANSI 刃数 切刃长度 孔径 刀片厚度 Rake 刀尖R角 主切刃长
ic Ød s α r la
TPGW080202 TPGW(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 0° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 5° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 10° 0.2 2.5
TPGW080204 TPGW(1.5)(1.5)1 1N 4.76 2.4 2.38 0° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 1N 4.76 2.4 2.38 5° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 1N 4.76 2.4 2.38 10° 0.4 2.5
TPGW080208 TPGW(1.5)(1.5)2 1N 4.76 2.4 2.38 0° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 1N 4.76 2.4 2.38 5° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 1N 4.76 2.4 2.38 10° 0.8 2.5
TPGW080202 TPGW(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 0° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 5° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 10° 0.2 2.5
TPGW080204 TPGW(1.5)(1.5)1 3N 4.76 2.4 2.38 0° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 3N 4.76 2.4 2.38 5° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 3N 4.76 2.4 2.38 10° 0.4 2.5
TPGW080208 TPGW(1.5)(1.5)2 3N 4.76 2.4 2.38 0° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 3N 4.76 2.4 2.38 5° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 3N 4.76 2.4 2.38 10° 0.8 2.5
TPGW110302 TPGW22(0.5) 1N 6.35 3.3 3.18 0° 0.2 2.5
TPGT110302 TPGT22(0.5) 1N 6.35 3.3 3.18 5° 0.2 2.5
TPGT110302 TPGT22(0.5) 1N 6.35 3.3 3.18 10° 0.2 2.5
TPGW110304 TPGW221 1N 6.35 3.3 3.18 0° 0.4 2.5
TPGT110304 TPGT221 1N 6.35 3.3 3.18 5° 0.4 2.5
TPGT110304 TPGT221 1N 6.35 3.3 3.18 10° 0.4 2.5
TPGW110308 TPGW222 1N 6.35 3.3 3.18 0° 0.8 2.5
TPGT110308 TPGT222 1N 6.35 3.3 3.18 5° 0.8 2.5
TPGT110308 TPGT222 1N 6.35 3.3 10° 0.8 2.5
TPGW110302 TPGW22(0.5) 3N 6.35 3.3 3.18 0° 0.2 2.5
TPGT110302 TPGT22(0.5) 3N 6.35 3.3 3.18 5° 0.2 2.5
TPGT110302 TPGT22(0.5) 3N 6.35 3.3 3.18 10° 0.2 2.5
TPGW110304 TPGW221 3N 6.35 3.3 3.18 0° 0.4 2.5
TPGT110304 TPGT221 3N 6.35 3.3 3.18 5° 0.4 2.5
TPGT110304 TPGT221 3N 6.35 3.3 3.18 10° 0.4 2.5
TPGW110308 TPGW222 3N 6.35 3.3 3.18 0° 0.8 2.5
TPGT110308 TPGT222 3N 6.35 3.3 3.18 5° 0.8 2.5
TPGT110308 TPGT222 3N 6.35 3.3 3.18 10° 0.8 2.5
TPGW160302 TPGW32(0.5) 1N 9.525 4.4 3.18 0° 0.2 2.5
TPGT160302 TPGT32(0.5) 1N 9.525 4.4 3.18 5° 0.2 2.5
TPGT160302 TPGT32(0.5) 1N 9.525 4.4 3.18 10° 0.2 2.5
TPGW160304 TPGW321 1N 9.525 4.4 3.18 0° 0.4 2.5
TPGT160304 TPGT321 1N 9.525 4.4 3.18 5° 0.4 2.5
TPGT160304 TPGT321 1N 9.525 4.4 3.18 10° 0.4 2.5
TPGW160308 TPGW322 1N 9.525 4.4 3.18 0° 0.8 2.5
TPGT160308 TPGT322 1N 9.525 4.4 3.18 5° 0.8 2.5
TPGT160308 TPGT322 1N 9.525 4.4 3.18 10° 0.8 2.5
TPGW160302 TPGW32(0.5) 3N 9.525 4.4 3.18 0° 0.2 2.5
TPGT160302 TPGT32(0.5) 3N 9.525 4.4 3.18 5° 0.2 2.5
TPGT160302 TPGT32(0.5) 3N 9.525 4.4 3.18 10° 0.2 2.5
TPGW160304 TPGW321 3N 9.525 4.4 3.18 0° 0.4 2.5
TPGT160304 TPGT321 3N 9.525 4.4 3.18 5° 0.4 2.5
TPGT160304 TPGT321 3N 9.525 4.4 3.18 10° 0.4 2.5
TPGW160308 TPGW322 3N 9.525 4.4 3.18 0° 0.8 2.5
TPGT160308 TPGT322 3N 9.525 4.4 3.18 5° 0.8 2.5
TPGT160308 TPGT322 3N 9.525 4.4 3.18 10° 0.8 2.5
TPGW160402 TPGW33(0.5) 1N 9.525 4.4 4.76 0° 0.2 2.5
TPGT160402 TPGT33(0.5) 1N 9.525 4.4 4.76 5° 0.2 2.5
TPGT160402 TPGT33(0.5) 1N 9.525 4.4 4.76 10° 0.2 2.5
TPGW160404 TPGW331 1N 9.525 4.4 4.76 0° 0.4 2.5
TPGT160404 TPGT331 1N 9.525 4.4 4.76 5° 0.4 2.5
TPGT160404 TPGT331 1N 9.525 4.4 4.76 10° 0.4 2.5
TPGW160408 TPGW332 1N 9.525 4.4 4.76 0° 0.8 2.5
TPGT160408 TPGT332 1N 9.525 4.4 4.76 5° 0.8 2.5
TPGT160408 TPGT332 1N 9.525 4.4 4.76 10° 0.8 2.5
TPGW160402 TPGW33(0.5) 3N 9.525 4.4 4.76 0° 0.2 2.5
TPGT160402 TPGT33(0.5) 3N 9.525 4.4 4.76 5° 0.2 2.5
TPGT160402 TPGT33(0.5) 3N 9.525 4.4 4.76 10° 0.2 2.5
TPGW160404 TPGW331 3N 9.525 4.4 4.76 0° 0.4 2.5
TPGT160404 TPGT331 3N 9.525 4.4 4.76 5° 0.4 2.5
TPGT160404 TPGT331 3N 9.525 4.4 4.76 10° 0.4 2.5
TPGW160408 TPGW332 3N 9.525 4.4 4.76 0° 0.8 2.5
TPGT160408 TPGT332 3N 9.525 4.4 4.76 5° 0.8 2.5
TPGT160408 TPGT332 3N 9.525 4.4 4.76 10° 0.8 2.5
PCD 等级与切削参数
切削推荐 有色金属
PCD 等级 PD10 PD20 PD30
工件材质 铝合金 低硅铝合金 高硅铝合金
切削速度(Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
每转进给量(Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD 材质对比表
等级 Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
