CCGW DCGW TCGW TPGW VBGW VCGW

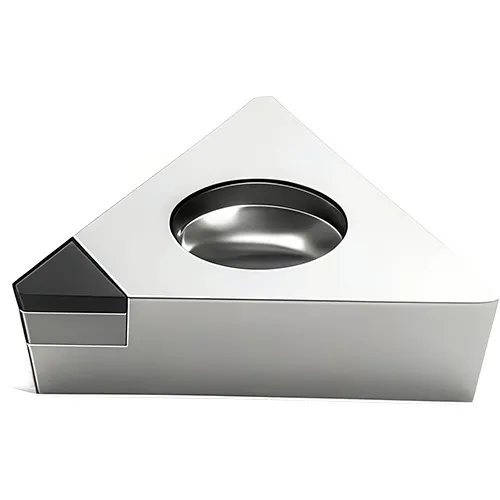

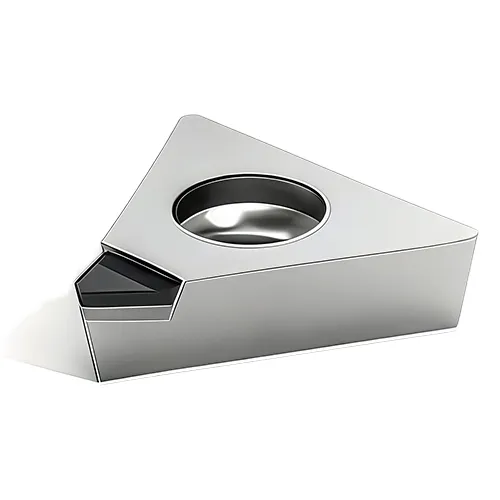

PCD系列刀具, TCGW

设备参数及选型：

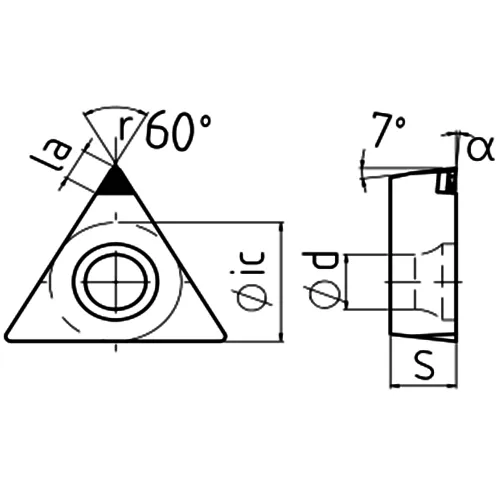

公制代码ISO	英制代码ANSI	刃数	切刃长度	孔径	刀片厚度	Rake	刀尖R角	主切刃长
公制代码ISO	英制代码ANSI	刃数	ic	Ød	s	α	r	la
TCGW080202	TCGW(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	1N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	1N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
TCGW080202	TCGW(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	3N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	3N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	3N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	3N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	3N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	3N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	3N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	3N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	10°	0.8	2.5

PCD 等级与切削参数

切削推荐	有色金属
PCD 等级	PD10	PD20	PD30
工件材质	铝合金	低硅铝合金	高硅铝合金
切削速度(Vc)	750(500-1000) m/min	500 (300-800) m/min	350 (200-500) m/min
每转进给量(Fn)	0.15(0.03-0.3) mm/r	0.15 (0.03-0.3) mm/r	0.15(0.03-0.3) mm/r

PCD 材质对比表

等级		Winice	Tungaloy	Mitsubishi	Sumitomo	Sandvik	Kyocera	Hitachi	Dijet	NTK	Seco	Kennametal	Iscar	Taegutec	Widia	Walter	Ceratizit	Centech -EG	ZCC.CT
N	N10	PD10	DX140	MD205 MD220	DA150	CD10	KPD001 KPD010 KPD230		JDA715	PD1	PCD05 PCD10 PCD20	KD100 KD1400 KD1425	ID5	KP500	WDN25U	WCD10	CTD4125 CTD4110	MD02	DN1011 DN0511
	N20	PD20	DX120	MD220 MD230	DA2200 DA1000	CD10	KPD001 KPD010 KPD230		JDA715	PD1	PCD05 PCD20	KD1425	ID8	KP300	WDN25U	WCD10	CTD4205	MD04 MD03	DN1031
	N30	PD30	DX110	MD230	DA2200 DA1000				JDA10		PCD20 PCD30 PCD30M		ID8	KP100				MD01	DN3021
