CCGW DCGW TCGW TPGW VBGW VCGW

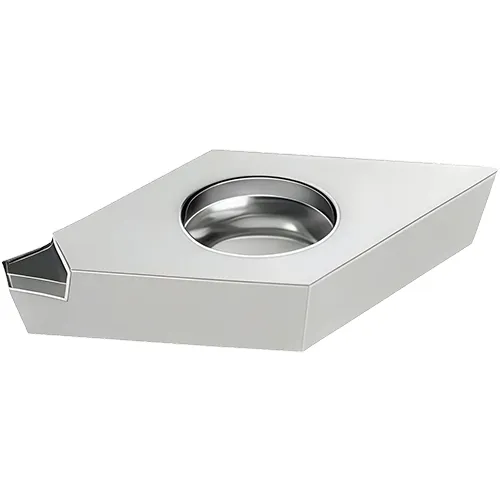

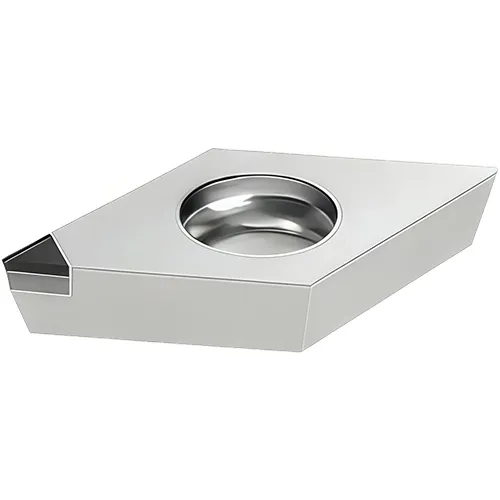

PCD系列刀具, DCGW

设备参数及选型：

公制代码ISO	英制代码ANSI	刃数	切刃长度	孔径	刀片厚度	Rake	刀尖R角	主切刃长

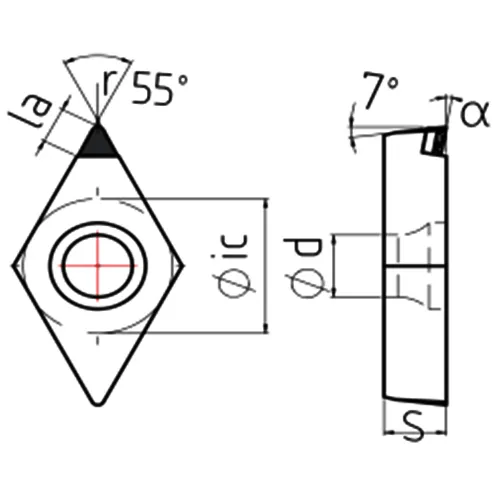

公制代码ISO	英制代码ANSI	刃数	ic	Ød	s	α	r	la
DCGW070202	DCGW2(1.5)(0.5)	1N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	1N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	1N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	10°	0.8	2.5
DCGW070202	DCGW2(1.5)(0.5)	2N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	2N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	2N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	1N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	1N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	1N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	2N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	2N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	2N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	10°	0.8	2.5

PCD 等级与切削参数

切削推荐	有色金属
PCD 等级	PD10	PD20	PD30
工件材质	铝合金	低硅铝合金	高硅铝合金
切削速度(Vc)	750(500-1000) m/min	500 (300-800) m/min	350 (200-500) m/min
每转进给量(Fn)	0.15(0.03-0.3) mm/r	0.15 (0.03-0.3) mm/r	0.15(0.03-0.3) mm/r

PCD 材质对比表

等级		Winice	Tungaloy	Mitsubishi	Sumitomo	Sandvik	Kyocera	Hitachi	Dijet	NTK	Seco	Kennametal	Iscar	Taegutec	Widia	Walter	Ceratizit	Centech -EG	ZCC.CT
N	N10	PD10	DX140	MD205 MD220	DA150	CD10	KPD001 KPD010 KPD230		JDA715	PD1	PCD05 PCD10 PCD20	KD100 KD1400 KD1425	ID5	KP500	WDN25U	WCD10	CTD4125 CTD4110	MD02	DN1011 DN0511
	N20	PD20	DX120	MD220 MD230	DA2200 DA1000	CD10	KPD001 KPD010 KPD230		JDA715	PD1	PCD05 PCD20	KD1425	ID8	KP300	WDN25U	WCD10	CTD4205	MD04 MD03	DN1031
	N30	PD30	DX110	MD230	DA2200 DA1000				JDA10		PCD20 PCD30 PCD30M		ID8	KP100				MD01	DN3021
